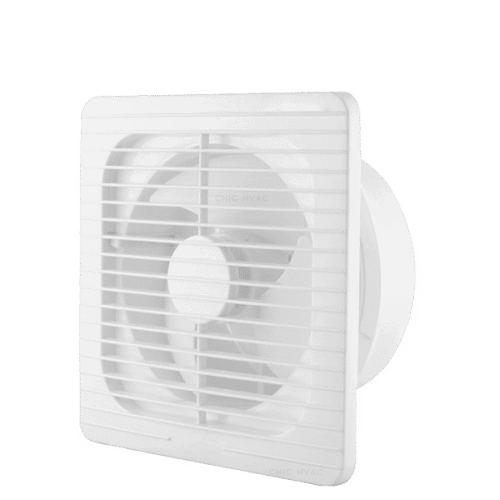

EC bathroom fan for efficient quiet ventilation

EC Bathroom Fan: Efficient, Quiet & Durable Ventilation

EC Bathroom Fan for frequent-use bathroom and commercial restroom ventilation with quiet EC motor operation

PROJECT FIT
EC Bathroom Fan for frequent-use bathroom and commercial restroom ventilation with quiet EC motor operation
PERFORMANCE RANGE
3 models · APC10/15/20 · 192–258 m³/h · 220V~50Hz · noise 38–42 dB · compact panel design
Add to quote
Bathroom fan specifications

EC Bathroom Fan quick check and model confirmation

EC Bathroom Fan is suited to frequent-use bathroom and commercial restroom ventilation where the mounting route, duct path and exact model row need to match for quote review.

Project fitEC bathroom exhaust
Applicationfrequent-use bathroom and commercial restroom ventilation
Project detailsConfirm runtime, noise target and mounting route for quote review
Selection rule

Do not approve the model from the product name alone. Confirm mounting route, duct path, opening size, airflow/noise target and power supply.

Dimensions & performance

EC Bathroom Fan specifications

EC Bathroom Fan dimensions
Model Panel (mm) Thickness (mm) Diameter (mm)
APC10-EC 142×142 75 98
APC15-EC 200×200 75 150
APC20-EC 250×250 100 180
EC Bathroom Fan performance
Model Voltage (V/Hz) Power (W) Airflow (m³/h) Speed (r/min) Noise (dB) Hole Size (mm)
APC10-EC 220V~50Hz 4 192 1800 38 102–103
APC15-EC 220V~50Hz 5 192 1800 40 152–158
APC20-EC 220V~50Hz 6 258 1800 42 198–203
Application fit

Where this exhaust fan fits

Best use

frequent-use bathroom and commercial restroom ventilation.

Selection factors

Confirm runtime, noise target and mounting route for quote review.

Avoid

Do not select only by product photo or generic category name.

Related hub

Compare all exhaust fan models.

Selection guide

Selection guide

1. Define room need

Bathroom, utility room, commercial restroom, workshop or sidewall exhaust.

2. Confirm air route

Ceiling duct, direct wall route, shutter opening or panel installation.

3. Match performance

Confirm airflow, noise target, duct length and bends.

4. Request confirmation

Send model, quantity, voltage and destination for selection support.

Fit check

Compare the options

Use the official Exhaust Fans Collection Hub when comparing ceiling, wall, EC bathroom and shutter exhaust fan options.

Frequently asked questions

How do I choose this model?

Start from the installation route and room use, then confirm the exact model datasheet or database row.

Can I use generic fan values?

No. Use only confirmed source values for airflow, noise, power and dimensions.

What should I send for quotation?

Send room type, opening size, duct path, airflow target, voltage, quantity and destination.

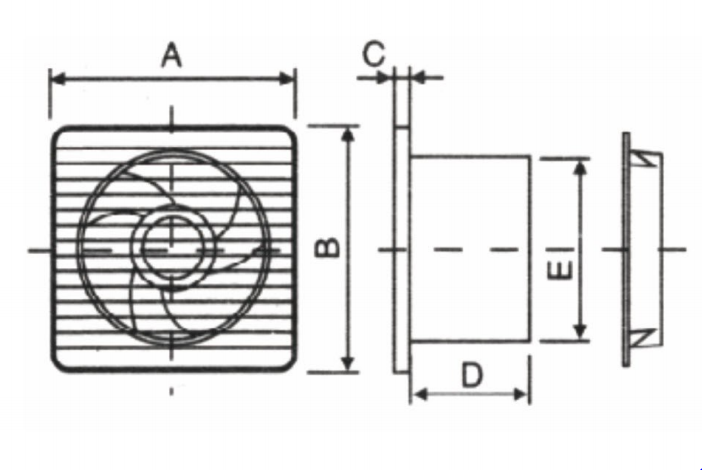

Installation Drawing And Dimensions Of Fan

apc series

EC Bathroom Fan: Efficient, Quiet & Durable Ventilation Selection Notes

Buyer search fit: EC bathroom fan, quiet bathroom exhaust fan, efficient bathroom ventilation. This product belongs to Linggongshare’s Exhaust Fans range and should be selected by mounting route, airflow requirement, noise target and installation environment.

  • Use this fan when bathroom exhaust needs quieter and more efficient operation.
  • It is suitable for apartments, hotels, offices, public restrooms and other frequent-use spaces.
  • Check airflow target, mounting position, grille requirement, power supply and expected daily operation time.

Related exhaust fan products

Core Engineering Features

EC Bathroom Fan quick check and model confirmation set against the published values on this page. Every point below is taken from this model’s own data.

Project fitEC bathroom exhaust
Applicationfrequent-use bathroom and commercial restroom ventilation
Project detailsConfirm runtime, noise target and mounting route for quote review
Panel (mm)142×142
Thickness (mm)75
Diameter (mm)98

Quality Assurance & Warranty

Fan orders are checked at the factory before shipping, because published airflow and pressure only hold if the delivered unit matches its table row.

Applied to this model: Project fit EC bathroom exhaust, Application frequent-use bathroom and commercial restroom ventilation. These checks are run against that specification before the unit ships.

Airflow and pressure checkChecks cover motor start-up, impeller balance, airflow and static pressure verification, noise review and model-to-table parameter matching.
Documented complianceCE, RoHS and related files cover the listed fan families; see the documents section below.
Warranty supportWarranty for fan orders is confirmed with the quotation for your destination market.
Service parts for fansImpellers, motor capacitors, mounting brackets and common service items.

OEM/ODM & Supply Options

For distributors and contractors working on ventilation projects, the supply side adapts to your market instead of one fixed fan build.

For this model (Project fit EC bathroom exhaust, Application frequent-use bathroom and commercial restroom ventilation), the OEM route can start from that base specification rather than a blank sheet.

OEM/ODMBadging, packaging and control options for fan orders, including branded cartons and manual inserts.
Airflow and pressure variantsModel selection, motor power and voltage options are reviewed against your duct calculation.
Voltage & plug optionsVoltage and plug configuration for this product line can be reviewed during quotation.
Documentation & bulk supplyCatalogues, technical sheets, available certificates, volume pricing and distributor programs for this product line.
Order quantity & lead timeMinimum order quantity, sampling and production lead time are confirmed per model and order volume — see the B2B supply page for how sourcing enquiries are handled.

Documents & Compliance

APC exhaust fan certificate documents are available for matched source models.

Scope: Applies to APC exhaust fan / VT100-VT125 scope in the certificate. FCC grant is limited to APC15-J wireless variant.

FCC is not a blanket claim for all APC fans; use only for APC15-J where the wireless/FCC scope matches.

What is the EC Bathroom Fan best for?

It is best for bathroom ventilation projects where lower noise, efficient operation and comfort are important, such as hotels, apartments, offices and public restrooms.

How is an EC bathroom fan different from a standard bathroom fan?

An EC bathroom fan is designed around efficient motor operation and comfort-focused ventilation. Selection should still be based on airflow, mounting route and room requirements.

Can it be used in commercial bathrooms?

Yes, it can be used in commercial bathrooms and public facilities when the airflow, installation position, power supply and maintenance access match the project requirement.
