Inline Duct Fan vs Mixed-Flow Fan: Which Should You Choose?

Inline Duct Fan vs Mixed-Flow Fan: Which Should You Choose?

Both an inline duct fan and a mixed-flow fan sit inside the duct run and move air along it, but they are built differently. An axial inline fan, which is a propeller-style impeller inside a duct spigot, moves a high air volume at modest pressure. It suits short, straight runs with low resistance. A mixed-flow fan uses a diagonal impeller that adds pressure while keeping a compact in-duct shape, so it suits longer runs, extra bends and outlet resistance. A centrifugal in-duct fan produces the most pressure of the three and is chosen when the duct system is the most demanding.

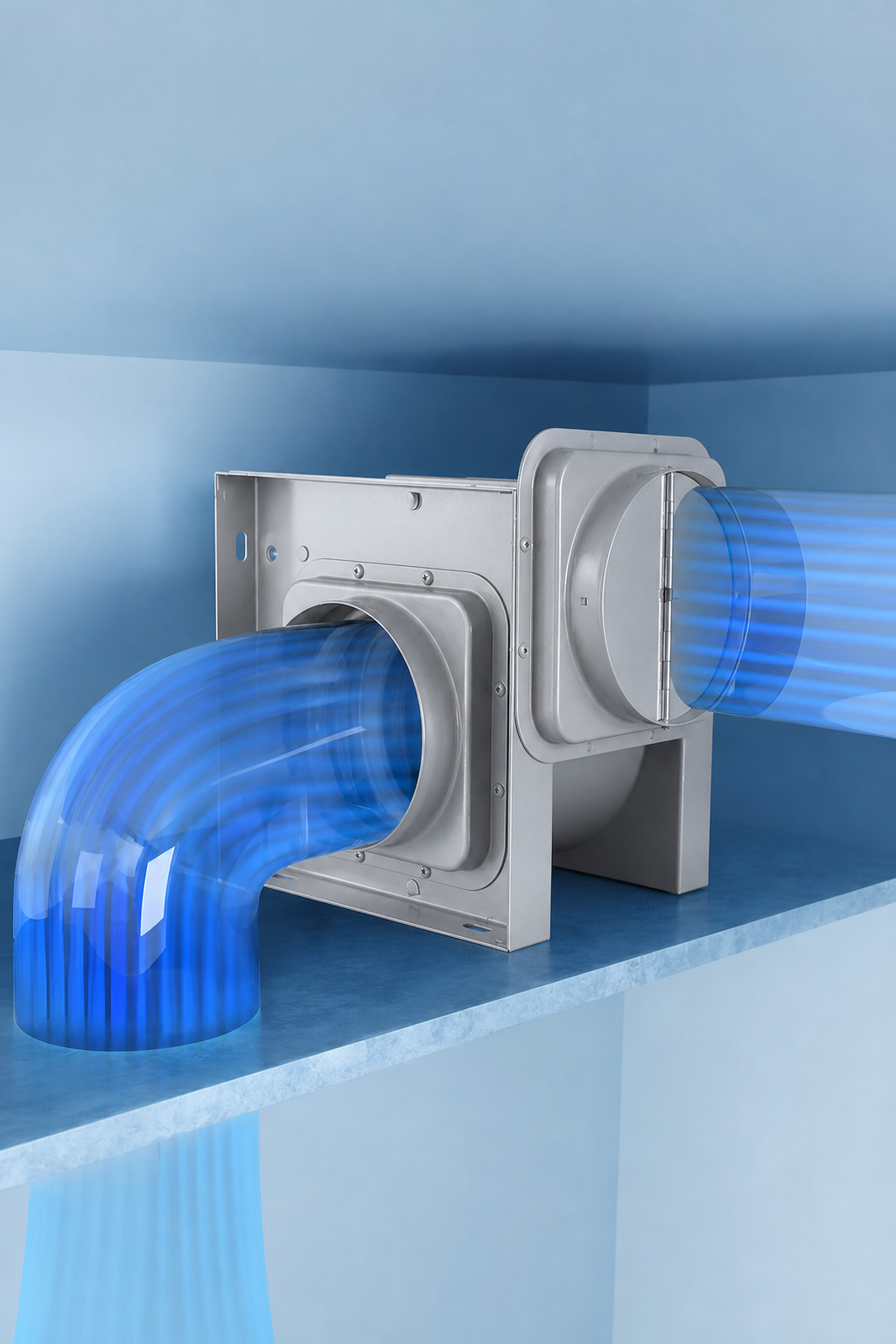

Concept illustration: how an inline duct fan boosts airflow along a duct run.

Airflow and static pressure are read together: as duct resistance rises, delivered airflow falls.

Quick Answer: Choose axial inline for short, straight runs where airflow matters most and resistance is low. Choose mixed-flow when the run is longer or has several bends and you still want quiet, compact in-duct installation. Choose centrifugal when the system resistance is high (long duct, many fittings, filters, or a heat exchanger). In every case, look at the published static pressure at the required airflow. Airflow on its own is not enough.

Note: values below are taken from the published duct-fan data on this site. They describe each family and are not a site-specific performance guarantee. Confirm the exact model against its datasheet before ordering.

How the three in-duct fan types differ

The one rule that matters most: match static pressure, not just airflow

The most common selection error is picking a fan by its airflow number alone. Airflow is published at a specific pressure; as duct resistance rises, the actual delivered airflow falls. If the published airflow is quoted at low pressure and the real duct system is long or has several bends, the fan will under-deliver. Always read the airflow together with the static pressure at the same operating point, and add a margin for a dirty filter or an extra bend.

Published reference data

Mixed-flow inline: DPT-P series

Dual-speed and single-speed mixed-flow units. The dual-speed models let the installer choose high or low air volume to balance noise and duty.

Silent mixed-flow inline: HF series

A compact quiet mixed-flow range for residential and light commercial duct, with a consistent 300 Pa static pressure across the sizes.

Centrifugal in-duct: DJT-B series

Metal round centrifugal in-duct fans. These deliver noticeably higher static pressure (up to 720 Pa) than axial or mixed-flow units from a similar duct size, which is why they are chosen for longer or more resistive systems.

Slim multi-room inline: DPT-H series

A slim in-duct unit often used where one unit serves a bathroom or utility room, with an application-area guide alongside the duty data.

Source: published duct-fan family data. Values are family ranges; the exact model datasheet governs ordering.

How to choose in four steps

1. Estimate the required airflow from the room volume and target air changes, or from the extract point requirement.
2. Estimate the system static pressure from duct length, bends, grilles and any filter or heat exchanger. This step decides the fan type: low pressure → axial/mixed-flow; high pressure → centrifugal.
3. Pick the duct diameter that fits the run, then choose the smallest fan in that size that meets both the airflow and the pressure at the same operating point.
4. Check noise and supply. For occupied spaces, prefer a dual-speed model run at low speed, and confirm 220 V / 50 Hz supply.

When each type is the wrong choice

• Axial inline in a long, bendy run: it will lose airflow once resistance rises. Use mixed-flow or centrifugal instead.
• Mixed-flow where the system resistance is very high: a centrifugal unit is the safer choice.
• A single fan trying to cover a large duct system with filters: confirm the pressure at the duty point or the unit will under-deliver.
• Noise-sensitive bedroom next to a high-pressure fan: use a larger low-speed unit or an acoustic enclosure rather than a small fast fan.

Frequently asked questions

Is a mixed-flow fan better than an axial inline fan?

Neither is universally better. A mixed-flow fan produces more pressure for the same duct size, so it suits longer runs and more fittings. An axial inline fan moves more air at low pressure and suits short, straight runs. Choose by the duct system resistance, not by the type name.

Can I use a mixed-flow fan for a whole-house system?

Yes. Mixed-flow in-duct fans are commonly used for whole-house and light commercial duct ventilation because they balance airflow, pressure and noise. For long runs with filters or a heat exchanger, step up to a centrifugal in-duct fan.

Why is airflow different from what the catalogue says?

Because airflow is published at a specific static pressure. If the installed duct system has more resistance than the test condition, the delivered airflow is lower. Read airflow and pressure together, and allow a margin.

Can Linggongshare recommend the exact model?

We can shortlist models once the required airflow, duct length and fittings, duct diameter and acceptable noise are known. Final selection should be confirmed against the model datasheet.
