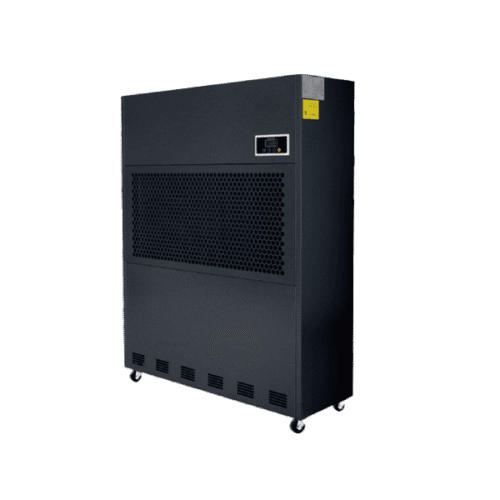

HT-DG480A1 Industrial Dehumidifier product image

HT-DG480A1 Industrial Dehumidifier | 480 L/D Moisture Control

HT-DG480A1 — industrial dehumidifier rated at 480 L/D , 8500 W, 4200 CFM, AC380V/50Hz. Designed for warehouses, production rooms, storage and equipment spaces. Backed by CE LVD/EMC attestation (M.2025.206.C118876) and RoHS technical file. S…

PRODUCT
HT-DG480A1 Industrial Dehumidifier | 480 L/D Moisture Control
CHECK FIRST
Confirm the exact model and project requirements.
INQUIRY
Send your application details for configuration review.
Add to quote
Industrial moisture control

HT-DG480A1 Industrial Dehumidifier | 480 L/D Large-Space Moisture Control

HT-DG480A1 is an industrial dehumidifier option for warehouses, production rooms, storage areas and equipment spaces where moisture control affects comfort, corrosion risk, product storage or process stability.

Capacity480 L/D
PowerAC380V/50Hz
Airflow4200 m³/h
Selection factors: The highest-capacity model in the series: 480 L/D with 4,200 m³/h of circulation, on three-phase 380 V. For the largest spaces and heaviest loads.
Placement check: keep air inlet and outlet paths clear, plan drainage where needed, and avoid positions where condensate or dust can block airflow.

Selection flow

Project flow

1Humidity loadconfirm litres per day against 480 L/D with margin.
2Drainagethree-phase 380 V, circuit planned for 8,500 W.
3Air circulationcontinuous drainage sized for a high condensate flow.
4Project detailsSend quantity, destination and the documents your project needs.

Application fit

Where this model fits, and what to verify first

Best fitVery large warehouses, big production halls and facilities with the heaviest moisture load.
Check firstThe daily load, a three-phase circuit for 8,500 W, air distribution and a heavy-duty drain.
AvoidChoosing it for a small or medium room, or without confirming the electrical supply.
Buyer noteThe top of the range at 480 L/D and 8,500 W. It is the right tool for a very large, high-load space and an expensive mistake anywhere smaller.

Technical Parameters

Published rows: The values below are the published model rows. Confirm the final configuration against the project requirements before order approval.
HT-DG480A1 Industrial Dehumidifier | 480 L/D Moisture Control technical and selection table
ModelDehumidificationVoltageInput powerAirflowSize
HT-DG480A1480AC380V/50Hz850042001200x410x1600

Project confirmation: Confirm the exact model, electrical supply, operating environment, installation space and required documents before final order approval.

Best-fit Applications

This is the largest unit in the series, built for spaces where a smaller model cannot keep up: a very large warehouse, a big production hall, or a facility with a consistently heavy moisture load. The 4,200 m³/h airflow is what lets dry air reach across a space of that scale.

It draws 8,500 W on three-phase 380 V, so the electrical supply is a major planning item. Drainage has to handle a high daily condensate volume continuously, and the installation needs clearance around a large floor-standing cabinet.

  • Very large warehouses: holds humidity down across a big storage volume all day.
  • Big production halls: keeps conditions stable where the load is heaviest.
  • High-demand facilities: where any smaller unit would fall short of target RH.

Selection guide

  • Moisture load: confirm litres per day against 480 L/D with margin.
  • Supply: three-phase 380 V, circuit planned for 8,500 W.
  • Air path: match the 4,200 m³/h circulation to a very large space.
  • Drain route: continuous drainage sized for a high condensate flow.
  • Placement: allow clearance and service access around a large cabinet.

What NOT to Buy

HT-DG480A1 Industrial Dehumidifier | 480 L/D Moisture Control technical and selection table
Situation Risk Better action
Small or medium room The largest model is oversized and wasteful there. Step down to a mid-range unit.
Insufficient supply 8,500 W needs a substantial three-phase circuit. Confirm the electrical supply first.
Uncalculated load Guessing at this capacity is costly. Work out litres per day.
Weak drainage A high-capacity unit produces a lot of condensate. Plan a heavy-duty continuous drain.

Industrial Dehumidifier Buyer Checklist

Use the source-backed product information on this page as the starting point, then confirm site conditions before approving the final model.

  • Daily moisture load against 480 L/D
  • Three-phase 380 V circuit for 8,500 W
  • Air distribution for 4,200 m³/h across a large volume
  • Heavy-duty continuous drain and service clearance
Selection note

HT-DG480A1 is positioned for high-capacity industrial moisture removal; confirm capacity, drainage and site humidity load before final selection.

Core Engineering Features

HT-DG480A1 Industrial Dehumidifier | 480 L/D Large-Space Moisture Cont set against the published values on this page. Every point below is taken from this model’s own data.

Capacity480 L/D
PowerAC380V/50Hz
Airflow4200 m³/h
Dehumidification480
VoltageAC380V/50Hz
Input power8500

Quality Assurance & Warranty

Dehumidifier orders are verified at the factory before shipping, because a unit sized for a humidity target is only useful if it arrives working to that target.

Applied to this model: Capacity 480 L/D, Power AC380V/50Hz. These checks are run against that specification before the unit ships.

Unit-level humidity checkChecks cover compressor start, coil and drain integrity, airflow, humidity sensor response and model-to-table parameter matching.
Documented complianceCE LVD/EMC and RoHS files cover the listed HT, LG and HT-DG dehumidifier families; see the documents section below.
Warranty supportWarranty for dehumidifier orders is confirmed with the quotation for your destination market.
Service parts for dehumidifiersFilters, drain fittings, humidity controllers and common service items.

OEM/ODM & Supply Options

For distributors and contractors working on moisture-control projects, the supply side adapts to your market instead of one fixed cabinet build.

For this model (Capacity 480 L/D, Power AC380V/50Hz), the OEM route can start from that base specification rather than a blank sheet.

OEM/ODMBadging, packaging and control options for dehumidifier orders, including branded cartons and manual inserts.
Capacity and duty-point adjustmentHumidity control range, capacity class and drainage arrangement can be reviewed against your project.
Voltage & plug optionsVoltage and plug configuration for this product line can be reviewed during quotation.
Documentation & bulk supplyCatalogues, technical sheets, available certificates, volume pricing and distributor programs for this product line.
Order quantity & lead timeMinimum order quantity, sampling and production lead time are confirmed per model and order volume — see the B2B supply page for how sourcing enquiries are handled.

Documents & Compliance

This dehumidifier series is supported by Linggong Electric CE LVD/EMC and RoHS documentation for the listed HT, LG, HT-DG, LG-DG and LG-D dehumidifier model ranges.

  • CE AttestationM.2025.206.C118876
  • Technical FilesDTCF0509-LVD/EMC and DTCF0509-ROHS
  • ApplicantZhejiang Linggong Electric Appliance Co., Ltd.

Scope boundary: use these documents for the dehumidifier model families listed in the certificates. The DTS1250 SGS performance report is not used here because its applicant/model scope does not match Linggongshare pages.

FAQ

How do I choose dehumidifier capacity?

Confirm the daily load against 480 L/D. This is the largest model, so it fits a very large space with a heavy load, and it needs three-phase power, 4,200 m³/h of air path and a heavy-duty drain.

Can it run continuously?

Yes. At 8,500 W on three-phase 380 V with 4,200 m³/h, it is built for continuous duty, provided the circuit and drain are sized for it. Keep the filter, air path and high-volume drain all clear, and allow service access around a large cabinet. At this capacity the drain and the electrical circuit are the two items that must be right.

Download product catalog PDF

Download the English product catalog PDF for HT-DG480A1 Industrial Dehumidifier | 480 L/D Moisture Control. Use it for model comparison, technical review and inquiry preparation.

Download catalog PDF

Use the exact model, voltage and installation conditions for project selection.

Product inquiry

Confirm the published specifications, then add this product to your quote list.
