HF-150 Oblique-Flow Pressurized Duct Fan | Single & Dual Speed Inline Fan

A compact oblique-flow inline duct fan for small branches and short duct runs, providing 540 m3/h airflow for light booster-duty ventilation

AIRFLOW
540 m³/h
POWER SUPPLY
220V
SPEED OPTIONS
Single / dual speed
Add to quote
Inline booster dutyCheck airflow and duct resistance220 V single / dual speed
MODEL OVERVIEW

HF-150 Oblique-Flow Inline Duct Fan

An oblique-flow inline duct fan with single-speed and dual-speed configurations for ducted ventilation.

Published airflow
540 m3/h
Power supply
220 V
Configuration
Single / dual speed



Check the table before final selection. Confirm the ordered version against the datasheet and project conditions.

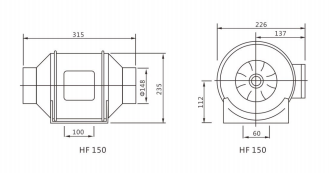

Installation Drawing And Dimension Of Fan

hf 150single

Technical Parameter


Model Type Power (W) Air Volume (m³/h) Noise (dB) Frequency (Hz) Speed (r/min) Voltage (V) Current (A) Static Pressure (Pa) Weight (mm) Size (mm)
HF-150 Single-speed 75 540 38 50 2600 220 0.53 300 146 L313×W225×H210
HF-150 Dual-speed 75/58 540/500 38/34 50 2600/2200 220 0.53/0.50 300/270 146 L313×W225

Two different HF duct-fan lines share this prefix

The published catalogue documents two distinct families, and both use model names starting with “HF”:

  • Diagonal booster duct fan — the HF-150 (single- and dual-speed) table above.
  • Pipeline silent (mixed-flow) duct fan — HF-100/125, HF-150 and HF-200.

Model names appearing in both lines carry different published airflow, static pressure and noise figures. Confirm which line your project specifies, and the matching datasheet, before ordering.

Core Engineering Features

HF-150 Oblique-Flow Inline Duct Fan set against the published values on this page. Every point below is taken from this model’s own data.

TypeSingle-speed
Power (W)75
Air Volume (m³/h)540
Noise (dB)38
Frequency (Hz)50
Speed (r/min)2600

Quality Assurance & Warranty

Fan orders are checked at the factory before shipping, because published airflow and pressure only hold if the delivered unit matches its table row.

Applied to this model: Type Single-speed, Power (W) 75. These checks are run against that specification before the unit ships.

Airflow and pressure checkChecks cover motor start-up, impeller balance, airflow and static pressure verification, noise review and model-to-table parameter matching.
Documented complianceCE, RoHS and related files cover the listed fan families; see the documents section below.
Warranty supportWarranty for fan orders is confirmed with the quotation for your destination market.
Service parts for fansImpellers, motor capacitors, mounting brackets and common service items.

OEM/ODM & Supply Options

For distributors and contractors working on ventilation projects, the supply side adapts to your market instead of one fixed fan build.

For this model (Type Single-speed, Power (W) 75), the OEM route can start from that base specification rather than a blank sheet.

OEM/ODMBadging, packaging and control options for fan orders, including branded cartons and manual inserts.
Airflow and pressure variantsModel selection, motor power and voltage options are reviewed against your duct calculation.
Voltage & plug optionsVoltage and plug configuration for this product line can be reviewed during quotation.
Documentation & bulk supplyCatalogues, technical sheets, available certificates, volume pricing and distributor programs for this product line.
Order quantity & lead timeMinimum order quantity, sampling and production lead time are confirmed per model and order volume — see the B2B supply page for how sourcing enquiries are handled.

Documents & Compliance

Download the HF-150 pressurized duct fan datasheet (PDF) used for the technical values on this page.

Confirm the exact model and current documentation before quotation or project documentation.

View all certifications and compliance documents by product scope

HF-150 selection checkpoints

Check the model table and duct path before final HF-150 selection.

Use HF-150 when
The project needs compact oblique-flow inline boosting for a small room, branch run or shorter duct route.
Check before selection
Confirm 540 m3/h duty, pressure demand, installation space and whether single-speed or dual-speed is the better fit.
Step up when
Move to HF-200 or above when the duct route is longer, resistance is higher or airflow margin is limited.
Send for quote
Provide duct diameter, route length, bends, outlet condition, voltage/frequency and noise target.

Next HF models to compare

Compare HF-200 or HF-315 when the route needs more airflow or pressure margin.

Frequently Asked Questions

What airflow does the HF-150 duct fan provide?

The table on this page lists HF-150 at 540 m3/h, with separate single-speed and dual-speed rows for oblique-flow duct fan model screening.

Does HF-150 have single-speed and dual-speed versions?

Yes. Use the table to compare the two rows, then confirm the preferred speed option for quote review review.

How do I choose between HF-150 and HF-200?

Choose HF-150 for compact duty, shorter runs and lighter pipe-fan boosting. Move up to HF-200 when airflow demand, duct resistance or route length needs more margin.
