Heat Recovery Ventilator VT100
VT100 / VT100-WF for small room, apartment and retrofit single-room ventilation
- PROJECT FIT
- VT100 / VT100-WF for small room, apartment and retrofit single-room ventilation
- SOURCE NOTE
- Key values from CHIC GROUP HVAC 2026 PDF p.8; confirm exact version
- QUOTE CHECKLIST
- Confirm wall tube length, room size, airflow step, power supply and installation depth
Source-backed VT100 HRV parameters
Published source: KCVENTS VT100 technical table. Control mode and final electrical configuration should be confirmed during inquiry.
| Parameter | Sleep | I | II | III |
|---|---|---|---|---|
| Voltage | 100–240V 50–60Hz | |||
| Max Power | 5W | |||
| Ventilator Total Power (W) | 2.5 | 3.0 | 3.5 | 3.8 |
| Airflow (m³/h) | 20 | 30 | 40 | 50 |
| Speed (RPM) | 1000 | 1500 | 2000 | 2500 |
| Transported Air Temperature | -20°C (-4°F) to +50°C (122°F) | |||
| Heat Exchange Efficiency | up to 90% | |||

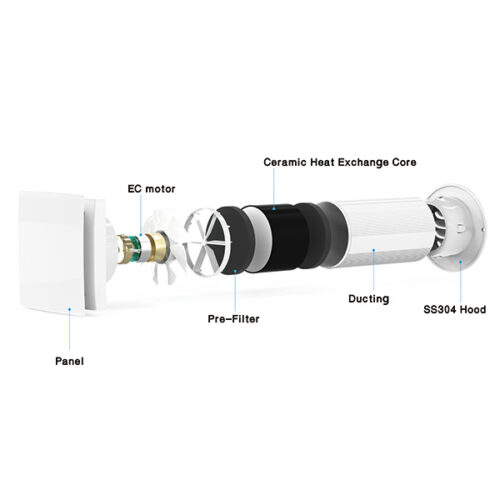

| Heat Exchanger Core | Ceramic |
HRV selection snapshot
VT100 fits small rooms, apartments and retrofit single-room ventilation. Confirm the exact order version against the PDF source for quote review.
Do not select a wall-mounted HRV by model name only. Confirm wall thickness, tube length, airflow step, control version and power supply for product selection.
Key specification checks
| Spec item | Source value | Buyer check |
|---|---|---|
| Voltage | 100–240V 50–60Hz | confirm local supply before order |
| Total power | 2.5 / 3.0 / 3.5 / 3.8 W by speed | Confirm the exact speed mode and version before order. |
| Airflow | 20 / 30 / 40 / 50 m³/h | sleep to high speed modes |
| Speed | 630 / 1500 / 2000 / 2500 RPM | depends on selected speed |
| Heat exchange efficiency | up to 90% | ceramic core, source page statement |
| Temperature range | -20°C to +50°C | transported air temperature |
Where this single-room HRV fits
This product is designed for single-room fresh-air ventilation with ceramic heat recovery. It is suitable when central ducted ERV installation is not practical or when a room-by-room retrofit is preferred.
Selection depends on room size, wall structure, airflow target, noise expectation and control preference.
- Room type and approximate area
- Wall thickness and available drilling diameter
- Required airflow step / noise expectation
- Control version: standard, WiFi or MS if applicable
- Voltage/frequency and quantity
HRV selection guide
Bedroom, apartment room, office, classroom or retrofit space.
Confirm installation tube length, wall thickness and outside grille position.
Use source-backed airflow steps and consider noise in occupied areas.
Choose standard, WiFi or MS version for quote review.
Compare VT single-room HRV models
Use VT100, VT125 and VT501 ranges by wall opening, airflow requirement, control version and room size. For accessories such as fresh-air valve or HEPA/carbon filter, use the HRV/accessory source pages from the same PDF before final page updates.
Core Engineering Features
Source-backed VT100 HRV parameters set against the published values on this page. Every point below is taken from this model’s own data.
Quality Assurance & Warranty
Fan orders are checked at the factory before shipping, because published airflow and pressure only hold if the delivered unit matches its table row.
Applied to this model: Project fit VT100 / VT100-WF, Application small room, apartment and retrofit single-room ventilation. These checks are run against that specification before the unit ships.
OEM/ODM & Supply Options
For distributors and contractors working on ventilation projects, the supply side adapts to your market instead of one fixed fan build.
For this model (Project fit VT100 / VT100-WF, Application small room, apartment and retrofit single-room ventilation), the OEM route can start from that base specification rather than a blank sheet.
Documents & Compliance
HRV certification documents are available for VT100 / VT125 / VT501 WiFi source scope.
Scope: Covers the VT100 / VT125 / VT501 WiFi HRV family scope stated in the source certificates.
Keep EU RED, UKCA RED and RoHS claims tied to the certificate model scope; confirm exact wireless variant before use.
Frequently asked questions
Can this replace a central ERV?
It is mainly a room-by-room retrofit option. For whole-building balanced ventilation, confirm a central ERV or multi-room design.
What must be checked before order?
Wall thickness, installation tube length, airflow step, control version, power supply and quantity.
Are the listed values final for every version?
No. The values are source-backed from PDF p.8; confirm the exact version and order configuration for quote review.
Download VT100 spec table (PDF)
