Commercial Energy Recovery Ventilator
Commercial energy recovery ventilator product view
  1. Commercial Energy Recovery Ventilator

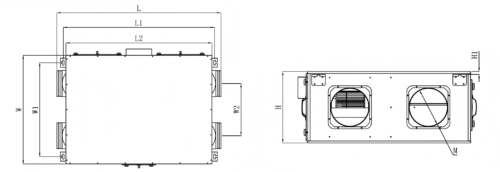

  2. Commercial energy recovery ventilator product view

Commercial Energy Recovery Ventilator

Commercial Energy Recovery Ventilator for energy-efficient fresh-air ventilation with heat recovery in commercial buildings

PROJECT FIT
Commercial Energy Recovery Ventilator for energy-efficient fresh-air ventilation with heat recovery in commercial buildings
PERFORMANCE RANGE
9 models · 220–380V · with energy recovery core · SYQR series · 500–8,000 m³/h range
Add to quote

Selection Snapshot

Commercial Energy Recovery Ventilator supports fresh-air duct ventilation projects where airflow, duct route, noise requirement and exact model row must be confirmed for quote review.

Performance & Specification Policy

Commercial Energy Recovery Ventilator technical and selection table
Item Selection factors Why it matters
Exact model Confirm by model nameplate or datasheet Avoids mixing similar series or legacy SKUs
Airflow / capacity Confirm required duty point for quote review Keeps selection tied to the project condition
Installation Confirm mounting method, voltage/frequency and site restrictions Reduces mismatch during procurement

Source-backed SYQR performance reference

The rows below match the selectable models shown on this page and are transcribed from the first-party Beiaole SYQR performance table retrieved on 2026-08-04. H/L values retain the source high/low order. Confirm the final selected model, installation conditions and current documentation before quotation.

SYQR commercial energy recovery ventilator source-backed performance reference
Model Gear Voltage (V) Power (W) Airflow (m³/h) Static pressure (Pa) Noise (dB) N.W. (kg)
SYQR-1000 H/L 220 600/500 1000/800 245/210 48/46 66.5
SYQR-1500 H/L 220 1100/900 1500/1200 265/230 52/50 67
SYQR-2000 H/L 220 1400/1200 2000/1700 270/245 55/53 83
SYQR-2500 H/L 220 1600/1400 2500/2200 285/255 56/53 85
SYQR-3000 — 220/380 1900 3000 275 57 106.5
SYQR-4000 — 220/380 2200 4000 305 58 107.5
SYQR-6000 — 380 3300 6000 345 62 195
SYQR-8000 — 380 4400 8000 370 65 284

Coverage boundary: The current selector also includes SYQR-500. The source table retrieved for this update lists SYQR-5000, not SYQR-500; no parameters are shown here for SYQR-500 until an exact source is confirmed.

Source record: Beiaole Commercial Energy Recovery Ventilator live performance table; source snapshot SHA-256: bb7fbb38a12ef325f184747a106df8b843c63c9d846d7d6db813baa44cba256f.

Typical Applications

Project fit

Fresh-air duct ventilation.

Spec reference

Numeric parameters should be finalized only from source records or the latest datasheet.

Selection factors

  1. Share the target application and installation location.
  2. Confirm exact model, voltage/frequency and duty requirement.
  3. Check whether any certificates, drawings or special materials are required.
  4. Send the confirmed model, site conditions and required documents for quotation.

Compare the options

Compare this product by exact model, duty point, installation method, site environment, support documents and after-sales requirements, not by title alone.

Core Engineering Features

Selection Snapshot set against the published values on this page. Every point below is taken from this model’s own data.

Project fitFresh-air duct ventilation.
Spec referenceNumeric parameters should be finalized only from source records or the latest datasheet.
Selection factorsConfirm by model nameplate or datasheet
Why it mattersAvoids mixing similar series or legacy SKUs

Quality Assurance & Warranty

Fan orders are checked at the factory before shipping, because published airflow and pressure only hold if the delivered unit matches its table row.

Applied to this model: Project fit Fresh-air duct ventilation., Spec reference Numeric parameters should be finalized only from source records or the latest datasheet.. These checks are run against that specification before the unit ships.

Airflow and pressure checkChecks cover motor start-up, impeller balance, airflow and static pressure verification, noise review and model-to-table parameter matching.
Documented complianceCE, RoHS and related files cover the listed fan families; see the documents section below.
Warranty supportWarranty for fan orders is confirmed with the quotation for your destination market.
Service parts for fansImpellers, motor capacitors, mounting brackets and common service items.

OEM/ODM & Supply Options

For distributors and contractors working on ventilation projects, the supply side adapts to your market instead of one fixed fan build.

For this model (Project fit Fresh-air duct ventilation., Spec reference Numeric parameters should be finalized only from source records or the latest datasheet.), the OEM route can start from that base specification rather than a blank sheet.

OEM/ODMBadging, packaging and control options for fan orders, including branded cartons and manual inserts.
Airflow and pressure variantsModel selection, motor power and voltage options are reviewed against your duct calculation.
Voltage & plug optionsVoltage and plug configuration for this product line can be reviewed during quotation.
Documentation & bulk supplyCatalogues, technical sheets, available certificates, volume pricing and distributor programs for this product line.
Order quantity & lead timeMinimum order quantity, sampling and production lead time are confirmed per model and order volume — see the B2B supply page for how sourcing enquiries are handled.

Documents & Compliance

Download the commercial energy recovery ventilator datasheet used for the technical values on this page, and review the relevant compliance documents.

Confirm the exact model, destination-market requirements and current documentation before quotation or project documentation.

View all certifications and compliance documents by product scope

Frequently Asked Questions

Can Linggongshare recommend a model directly?

Yes. Send the application, airflow or capacity target, installation constraints and power supply. The team can help narrow the model range.

Are all technical values final on this page?

For safety, final selection should be confirmed against the latest exact-model datasheet or source parameter record.
