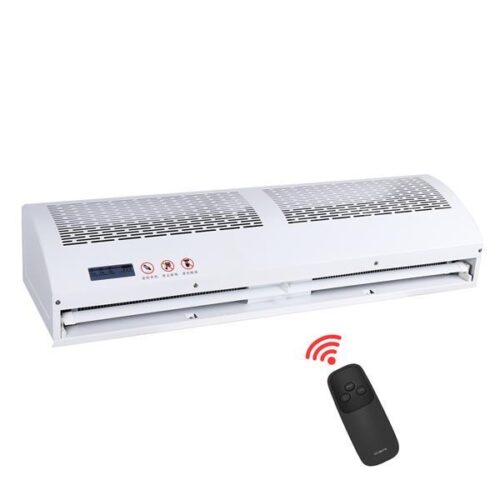

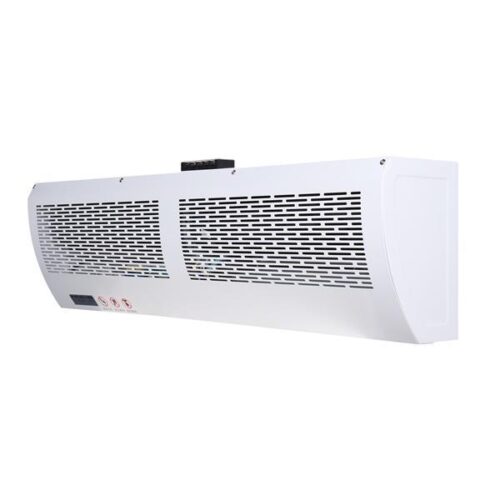

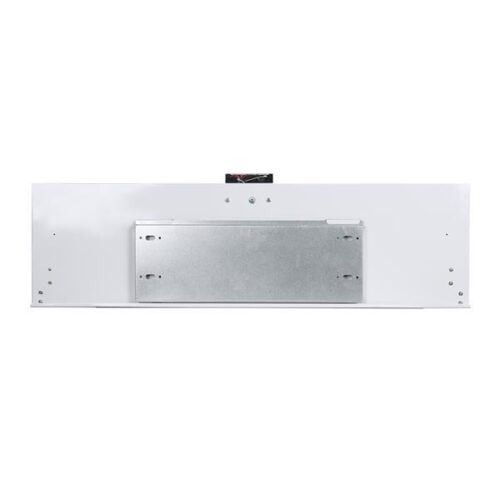

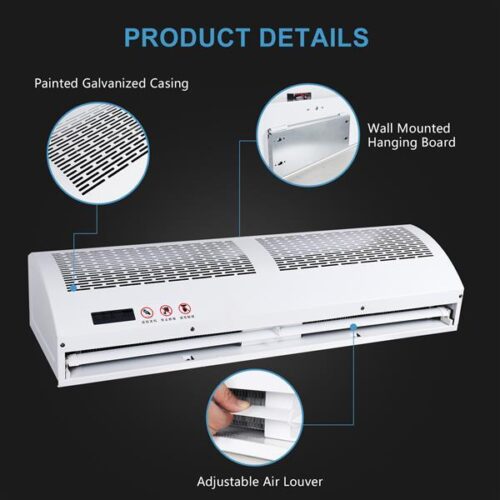

Heating Air Curtain

Heating Air Curtain for standard doorway warm-air support where moderate heating is sufficient for entrance comfort

IDONEITÀ AL PROGETTO
Heating Air Curtain for standard doorway warm-air support where moderate heating is sufficient for entrance comfort
RANGE DI PRESTAZIONI
4 models · RM series · 220–380V · with PTC heating · 900–1,800 mm door width
Aggiungi al preventivo
Panoramica selezione barriera d'aria

Panoramica di selezione

Heating Air Curtain is positioned for entrances needing air separation plus electric heating / temperature rise support. The table below uses CHIC 2026 PDF-backed rows and keeps confidence wording visible where the source model is aligned with the RM order range.

Source note: CHIC GROUP HVAC 2026 PDF p.49 supports the main heating-air-curtain selection rows. Combined D/Y source rows still require final confirmation of the exact power and voltage configuration for quote review.
Varianti di esempioRM-1209-D/Y / RM-1212-D/Y / RM-1215-D/Y / RM-1218-D/Y
Applicationentrances needing air separation plus electric heating / temperature rise support
Dettagli del progettoConfirm D/Y configuration, voltage, PTC power step, door width, airflow target and heating requirement
Dettagli del progetto

Confirm the opening width, mounting height, voltage, required air speed and exact order variant for quote review.

Documented checks

Verifiche modello supportate da fonte

Heating Air Curtain technical and selection table
Variante ordine Modello sorgente PDF Voltage Alimentazione Portata d'aria m³/h Velocità aria m/s Rumore dB Dimensioni mm Confidence
RM-1209-D/Y RM-1209D/Y 380/220-50 160-110 1000 8.0-6.5 <55 900x170x205 medium
RM-1212-D/Y RM-1212D/Y 380/220-50 220-150 1200 8.0-6.5 <57 1200x170x205 medium
RM-1215-D/Y RM-1215D/Y 380/220-50 260-180 1400 8.0-6.5 <58 1500x170x205 medium
RM-1218-D/Y RM-1218D/Y 380/220-50 320-250 1600 8.0-6.5 <60 1800x170x205 medium
Idoneità all'applicazione

Dove è adatta questa barriera d'aria

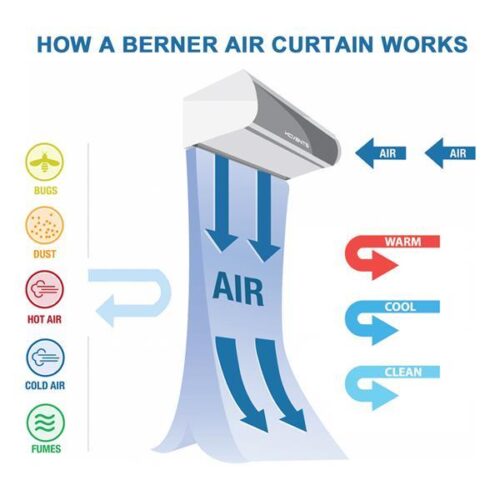

Utilizzare questa serie quando l'apertura necessita di una barriera d'aria per ridurre polvere, insetti, scambio aria calda/fredda o perdita di aria condizionata.

Scegliere il modello in base a larghezza apertura e altezza di installazione, poi confermare velocità aria, livello di rumore, tensione e spazio di montaggio.

Nota preventivo

Send the opening size, operating conditions, power supply and installation space so the correct order variant can be confirmed quickly.

Confronta

Confronta famiglie di barriere d'aria

I modelli Q/B a flusso trasversale si adattano ad aperture generali, i modelli X5 e centrifughi industriali si adattano a esigenze di velocità aria più elevate, i modelli riscaldanti aggiungono aumento di temperatura, i modelli incassati a soffitto nascondono il corpo, e i modelli per celle frigorifere aiutano a ridurre la perdita di aria fredda.

Frequently asked questions

Can I choose by door width only?

No. Door width is only the first step; mounting height, air speed, voltage, heating need and noise target also matter.

Why do some rows say medium confidence?

The numeric source row is clear, but the PDF model may use a mapped order code or combined variant. Confirm the exact order model before final quotation.

What should I send for quote?

Send opening width, mounting height, voltage, indoor/outdoor conditions, preferred series and destination.

Core Engineering Features

Source-backed model checks set against the published values on this page. Every point below is taken from this model’s own data.

Varianti di esempioRM-1209-D/Y / RM-1212-D/Y / RM-1215-D/Y / RM-1218-D/Y
Applicationentrances needing air separation plus electric heating / temperature rise support
Dettagli del progettoConfirm D/Y configuration, voltage, PTC power step, door width, airflow target and heating requirement
Voltage380/220-50
Alimentazione160-110
Portata d'aria m³/h1000

Quality Assurance & Warranty

Air curtain orders are checked at the factory before shipping, because barrier performance depends on discharge speed matching the door the unit serves.

Applied to this model: Sample variants RM-1209-D/Y / RM-1212-D/Y / RM-1215-D/Y / RM-1218-D/Y, Application entrances needing air separation plus electric heating / temperature rise support. These checks are run against that specification before the unit ships.

Discharge and length checkChecks cover motor start-up, discharge air speed, airflow, unit length and panel fit, plus model-to-table parameter matching.
Documented complianceCE and related files cover the listed air curtain families; see the documents section below.
Warranty supportWarranty for air curtain orders is confirmed with the quotation for your destination market.
Service parts for air curtainsMotors, PTC heating modules, control boards and common service items.

OEM/ODM & Supply Options

For distributors and contractors working on entrance projects, the supply side adapts to your market instead of one fixed air curtain build.

For this model (Sample variants RM-1209-D/Y / RM-1212-D/Y / RM-1215-D/Y / RM-1218-D/Y, Application entrances needing air separation plus electric heating / temperature rise support), the OEM route can start from that base specification rather than a blank sheet.

OEM/ODMBadging, packaging and control options for air curtain orders, including branded cartons and manual inserts.
Length and speed variantsUnit length, discharge speed and ambient or heated configuration are reviewed for your doorway.
Voltage & plug optionsVoltage and plug configuration for this product line can be reviewed during quotation.
Documentation & bulk supplyCatalogues, technical sheets, available certificates, volume pricing and distributor programs for this product line.
Order quantity & lead timeMinimum order quantity, sampling and production lead time are confirmed per model and order volume — see the B2B supply page for how sourcing enquiries are handled.

Documenti & conformità

Heating Air Curtain can reference the available air-curtain compliance document package where the exact FM / mapped RM model is included in the source scope.

  • Certificate scope Documenti per barriere d'aria serie FM rilasciati per Shenzhen Chic Technology Co., Ltd.
  • Core standards CE EMC, CE LVD and IEC 60335 fan safety documents.
  • Use rule Match the exact FM / mapped RM model before tender or customs use.

Vedi tutti i documenti di certificazione delle barriere d'aria per ambito di prodotto

Scope boundary: these files are air-curtain documents under the FM-series source scope. Linggong LK-FM pages use mapped model wording; confirm the exact model shown in the source document before making project compliance claims. Do not apply these files to high-power, elevator, cold-storage, industrial FM60 or ceiling FM-CS models unless separately verified.
