Cross-Flow Air Curtain Q Series

Source note

Panoramica di selezione

La barriera d'aria a flusso trasversale serie Q è posizionata per ingressi retail, piccole porte commerciali e aperture di separazione d'aria generale. La tabella sotto utilizza righe supportate dal PDF CHIC 2026 e mantiene le diciture di affidabilità dove il modello sorgente corrisponde a una variante Linggong LK.

Source: CHIC GROUP HVAC 2026 PDF p.48 · medium source: source rows are FM models mapped to Linggong LK-FM variants; confirm exact order model

Varianti di esempioLK-FM125-06 / LK-FM125-10 / LK-FM125-12 / LK-FM125-15

Applicationretail entrances, small commercial doors and general air-separation openings

Fattori di selezioneConfirm door width, installation height, voltage, target air speed, noise limit and exact LK-FM variant

Verifica di selezione

Air curtains must be selected by door width, mounting height, air speed and voltage. Medium rows require exact Linggong variant confirmation before final quotation.

Documented checks

Verifiche modello supportate da fonte

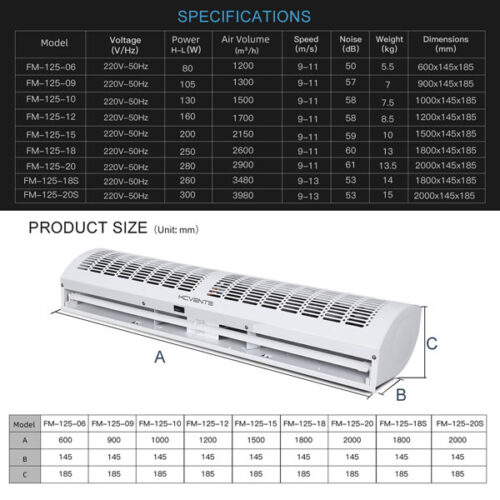

Cross-Flow Air Curtain Q series technical and selection table
Modello	Dimensions (mm)	Tensione (V)	Frequenza (Hz)	Potenza (W)	Speed (m/s)	Airflow (m3/h)	Rumorosità (dB)	Weight (kg)	Next step
FM-125-06	600x145x185	220	50	105	9-11	1200	50	5.5	Ask about this model
FM-125-09	900x145x185	220	50	105	9-11	1300	57	7	Ask about this model
FM-125-10	1000x145x185	220	50	130	9-11	1500	58	7.5	Ask about this model
FM-125-12	1200x145x185	220	50	160	9-11	1700	58	8.5	Ask about this model
FM-125-15	1500x145x185	220	50	200	9-11	2150	59	10	Ask about this model
FM-125-18	1800x145x185	220	50	250	9-11	2600	60	13	Ask about this model
FM-125-20	2000x145x185	220	50	280	9-11	2900	61	13.5	Ask about this model

Idoneità all'applicazione

Dove è adatta questa barriera d'aria

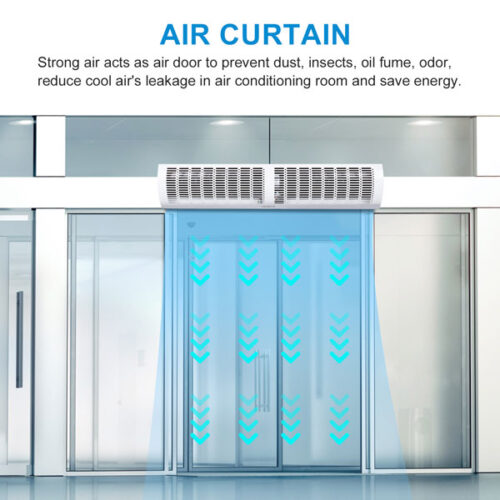

Utilizzare questa serie quando l'apertura necessita di una barriera d'aria per ridurre polvere, insetti, scambio aria calda/fredda o perdita di aria condizionata.

Scegliere il modello in base a larghezza apertura e altezza di installazione, poi confermare velocità aria, livello di rumore, tensione e spazio di montaggio.

Send these details

Door width and mounting height
Indoor/outdoor temperature difference
Voltage and installation space
Noise target and required air speed

Confronta

Confronta famiglie di barriere d'aria

I modelli Q/B a flusso trasversale si adattano ad aperture generali, i modelli X5 e centrifughi industriali si adattano a esigenze di velocità aria più elevate, i modelli riscaldanti aggiungono aumento di temperatura, i modelli incassati a soffitto nascondono il corpo, e i modelli per celle frigorifere aiutano a ridurre la perdita di aria fredda.

Core Engineering Features

Source-backed model checks set against the published values on this page. Every point below is taken from this model’s own data.

Varianti di esempioLK-FM125-06 / LK-FM125-10 / LK-FM125-12 / LK-FM125-15

Applicationretail entrances, small commercial doors and general air-separation openings

Fattori di selezioneConfirm door width, installation height, voltage, target air speed, noise limit and exact LK-FM variant

Dimensions (mm)600x145x185

Tensione (V)220

Frequenza (Hz)50

Quality Assurance & Warranty

Air curtain orders are checked at the factory before shipping, because barrier performance depends on discharge speed matching the door the unit serves.

Applied to this model: Sample variants LK-FM125-06 / LK-FM125-10 / LK-FM125-12 / LK-FM125-15, Application retail entrances, small commercial doors and general air-separation openings. These checks are run against that specification before the unit ships.

Discharge and length checkChecks cover motor start-up, discharge air speed, airflow, unit length and panel fit, plus model-to-table parameter matching.

Documented complianceCE and related files cover the listed air curtain families; see the documents section below.

Warranty supportWarranty for air curtain orders is confirmed with the quotation for your destination market.

Service parts for air curtainsMotors, PTC heating modules, control boards and common service items.

OEM/ODM & Supply Options

For distributors and contractors working on entrance projects, the supply side adapts to your market instead of one fixed air curtain build.

For this model (Sample variants LK-FM125-06 / LK-FM125-10 / LK-FM125-12 / LK-FM125-15, Application retail entrances, small commercial doors and general air-separation openings), the OEM route can start from that base specification rather than a blank sheet.

OEM/ODMBadging, packaging and control options for air curtain orders, including branded cartons and manual inserts.

Length and speed variantsUnit length, discharge speed and ambient or heated configuration are reviewed for your doorway.

Voltage & plug optionsVoltage and plug configuration for this product line can be reviewed during quotation.

Documentation & bulk supplyCatalogues, technical sheets, available certificates, volume pricing and distributor programs for this product line.

Order quantity & lead timeMinimum order quantity, sampling and production lead time are confirmed per model and order volume — see the B2B supply page for how sourcing enquiries are handled.

Documenti & conformità

Download the cross-flow air curtain Q series datasheet (PDF) used for the technical values on this page.

Download cross-flow air curtain Q series datasheet (PDF)

Confirm the exact model and current documentation before quotation or project documentation.

View all certifications and compliance documents by product scope

Frequently asked questions

Can I choose by door width only?

No. Door width is only the first step; mounting height, air speed, voltage, heating need and noise target also matter.

Why do some rows say medium confidence?

The numeric source row is clear, but the PDF model may map to a Linggong LK-prefixed or combined variant. Confirm exact order model before final quotation.

What should I send for quote?

Send opening width, mounting height, voltage, indoor/outdoor conditions, preferred series and destination.
