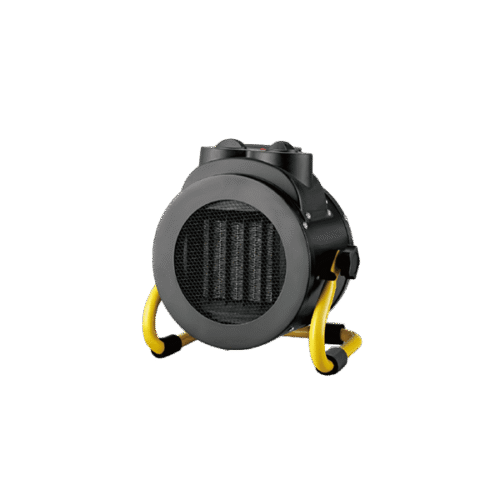

LG-PTC-D2/D3 PTC Heater Fans product image
LG-PTC-D2/D3 PTC Heater Fans | Compact Electric Heating
  1. LG-PTC-D2/D3 PTC Heater Fans product image

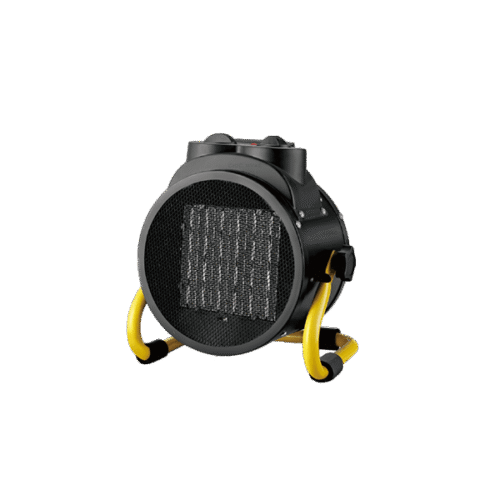

  2. LG-PTC-D2/D3 PTC Heater Fans | Compact Electric Heating

Aérothermes PTC LG-PTC-D2/D3 | Chauffage électrique compact

LG-PTC-D2/D3 PTC Heater Fans for compact electric heating in small commercial and residential spaces

ADÉQUATION AU PROJET
LG-PTC-D2/D3 PTC Heater Fans for compact electric heating in small commercial and residential spaces
PLAGE DE PERFORMANCES
PTC-D2/D3 · compact electric heater · fan-forced · 220V
Contrôle industriel de l'humidité
Contrôle climatique industriel · Données de chauffage sourcées

Compact PTC Heater Selection Snapshot

Compact PTC electric heater fan options for rooms and small commercial spaces, with model parameters sourced from the Linggong supplement table.

Tableau des modèles exactsCTA prêt pour demande de renseignementsNote de confirmation de la fiche technique
Les images produit sont fournies à titre de contexte d'installation/d'utilisation. La sélection finale du chauffage doit confirmer la fiche technique du modèle exact, la tension, le type de carburant/d'alimentation électrique, la surface de chauffage et les conditions de ventilation.

Technical Parameters

LG-PTC-D2/D3 PTC Heater Fans | Compact Electric Heating technical and selection table
Modèle Tension / Fréquence Puissance nominale Débit d'air Dimensions du produit Reference Area Source Note
LG-PTC-D2 220 V / 50 Hz 25/1000/2000 W 158 m³/h 190x255x268 mm 20 m² Confirm project configuration
LG-PTC-D3 220 V / 50 Hz 25/1800/3000 W 218 m³/h 210x285x300 mm 30 m² Confirm project configuration
Data source: Linggong product parameter supplement, pages listed in the table. Published rows should be confirmed against the exact model datasheet before final purchase/specification.

Applications & Buyer Fit

Typical spacesRoom heating, drying support and small-area warm air circulation.
Procurement valueQuick model comparison for workshops, warehouses, temporary work areas and small commercial rooms.
Safety noteKeep combustible materials away from hot air outlet and follow local electrical/fuel ventilation requirements.

Selection Guide

Choose LG-PTC-D2 for smaller rooms and LG-PTC-D3 when higher warm-air output is needed under the same 220 V / 50 Hz supply.

For electric heaters, confirm single/three-phase supply and wiring capacity. For oil/diesel heaters, confirm ventilation, fuel handling and whether indirect heating is required by the site.

Send us:

  • Heating area and ceiling height
  • Voltage/frequency available on site
  • Indoor/outdoor or temporary use
  • Required warm-up speed and duty cycle

Model Comparison Notes

LG-PTC-D2 lists 25/1000/2000 W with 158 m³/h air volume; LG-PTC-D3 lists 25/1800/3000 W with 218 m³/h air volume.

What Not to Buy

Do not choose by power only. Oversized heaters can create comfort and safety issues, while undersized units fail to warm the space. Do not use fuel-fired heaters in poorly ventilated enclosed areas without confirming local safety requirements.

PTC Heater Buyer Checklist

Use the source-backed table above as the starting point, then confirm site conditions before approving the final heater model.

  • Room area, insulation and expected warm-up speed
  • Available 220 V / 50 Hz power supply and outlet safety
  • Whether drying support or personal comfort heating is the main use
  • Target delivery date and quantity for quotation
Fast model comparison

Use LG-PTC-D2 for smaller rooms and LG-PTC-D3 when higher output and airflow are needed under the same 220 V supply.

Source-Backed Selection & Series Hub

This heater page keeps model-level parameters close to the Linggong source supplement. For cross-model comparison, use the Warm Air Blower & Heater Series hub before sending the inquiry.

Final confirmation required

Confirm exact datasheet, voltage/frequency, site ventilation, safety clearance, quantity and delivery requirement before final specification.

Core Engineering Features

Compact PTC Heater Selection Snapshot set against the published values on this page. Every point below is taken from this model’s own data.

Tension / Fréquence220 V / 50 Hz
Puissance nominale25/1000/2000 W
Débit d'air158 m³/h
Dimensions du produit190x255x268 mm
Reference Area20 m²

Quality Assurance & Warranty

Heater orders are checked at the factory before shipping, because heating output and safety devices have to be verified unit by unit.

Applied to this model: Voltage / Frequency 220 V / 50 Hz, Rated Power 25/1000/2000 W. These checks are run against that specification before the unit ships.

Heat output and safety checkChecks cover element or burner start-up, overheat and safety cut-out response, airflow, fuel or electrical verification and model-to-table parameter matching.
Documented complianceCE and related files cover the listed heater families; see the documents section below.
Warranty supportWarranty for heater orders is confirmed with the quotation for your destination market.
Service parts for heatersHeating elements, thermostats, fuel nozzles and common service items.

OEM/ODM & Supply Options

For distributors and contractors working on heating projects, the supply side adapts to your market instead of one fixed heater build.

For this model (Voltage / Frequency 220 V / 50 Hz, Rated Power 25/1000/2000 W), the OEM route can start from that base specification rather than a blank sheet.

OEM/ODMBadging, packaging and control options for heater orders, including branded cartons and manual inserts.
Output and control variantsHeating capacity, fuel or electrical supply and control options are reviewed for your site.
Voltage & plug optionsVoltage and plug configuration for this product line can be reviewed during quotation.
Documentation & bulk supplyCatalogues, technical sheets, available certificates, volume pricing and distributor programs for this product line.
Order quantity & lead timeMinimum order quantity, sampling and production lead time are confirmed per model and order volume — see the B2B supply page for how sourcing enquiries are handled.

Documents & conformité

This heater series is supported by Linggong Electric CE EMC documentation covering LG-Y, LG-Q, HB/BH, LG-CDJ, LG-PTC, LG-D and LG-C heater model families.

  • CE EMC AttestationM.2024.206.C109286
  • Report No.HICFI101-EMC
  • ApplicantZhejiang Linggong Electric Appliance Co., Ltd.

Scope boundary: this is an EMC attestation for the listed heater model families; confirm exact model name and destination-market requirements before project documentation.

FAQ

Can these heater models be used as final engineering specifications?

Use this table as a source-backed product page reference. Final ordering should confirm the exact model datasheet and site conditions.

Which model should I choose?

Share the area, ceiling height, insulation, voltage and whether fuel-fired heating is acceptable. We can help narrow the model for quote review.

Download product catalog PDF

Download the English product catalog PDF for Aérothermes PTC LG-PTC-D2/D3 | Chauffage électrique compact. Use it for model comparison, technical review and inquiry preparation.

Download catalog PDF

Use the exact model, voltage and installation conditions for project selection.

Product inquiry

Confirm the published specifications, then add this product to your quote list.
