🎯 Trouvez le bon produit de ventilation
Demandez à notre IA CVC — obtenez des spécifications et une recommandation en quelques secondes
🔍

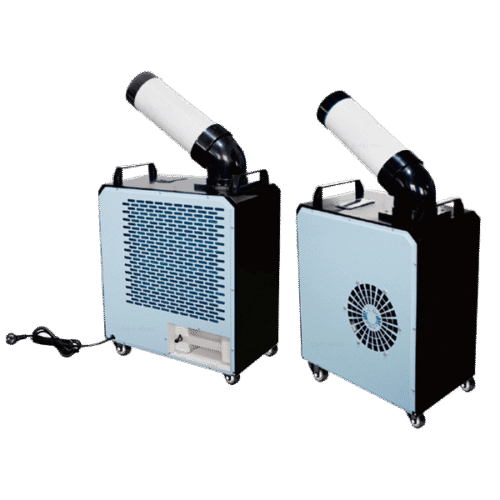

HT-P20GA Portable Air Conditioner product image
HT-P20GA Portable Air Conditioner product image
  1. HT-P20GA Portable Air Conditioner product image
  2. HT-P20GA Portable Air Conditioner product image

HT-P20GA Portable Air Conditioner | Industrial Spot Cooling

1460W (5000BTU) portable spot cooling for industrial work zones

COOLING DUTY
1460W (5000BTU) portable spot cooling for industrial work zones
VÉRIFICATION DE L'ALIMENTATION
AC220V-50Hz; confirm circuit capacity before ordering
QUICK CHECK
Confirm exhaust route and datasheet details before quotation
Contrôle industriel de l'humidité

Source-backed industrial portable air conditioner parameters

Source: KCVENTS Industrial Portable Air Conditioner technical table. Linggongshare model HT-P20GA is mapped to source label LG-P20 GA; spacing/prefix normalization only. Confirm voltage, destination-market configuration and final operating conditions before quotation.

Linggongshare modelSource modelVoltageCooling capacityRated powerNoiseAirflowWorking temperatureRefrigerantDehumidification capacityHumidity rangeDefrostingGross weight (kg)Product size (mm)Drainage
HT-P20GALG-P20 GAAC220V-50Hz1460W (5000BTU)620W––16℃-45℃R134A–––26310×470×630Automatic Drainage
Portable industrial spot cooling

HT-P20GA Industrial Portable Air Conditioner | Compact Spot Cooling Unit

HT-P20GA is a portable industrial air conditioner for spot cooling around workstations, temporary production areas, equipment rooms and hot workshop zones. Use it when fixed HVAC is unavailable or when only a defined work area needs cooling.

Cooling capacity1460W (5000BTU)
Power supplyAC220V-50Hz
Machine classSmaller Than 1HP
Quick check: Portable AC performance depends on ambient temperature, exhaust duct routing, condensate handling and the distance between outlet air and operator position. Confirm the exact model datasheet before project approval.
Placement check: keep air intake and exhaust paths clear. Do not block outlet ducts or use the unit as a sealed-room HVAC replacement without heat exhaust planning.

Project details

Project flow

1Heat loadShare process heat, room size and operators near the unit.
2Exhaust routeConfirm hot-air exhaust path and condensate handling.
3Power checkConfirm voltage, plug/circuit capacity and movement route.
4Project detailsSend quantity, destination and documents needed.

Application fit

Where this model fits, and what to verify first

Best forWorkstations, production corners and temporary cooling zones.
Check firstDuct/exhaust path and hot-air discharge direction.
AvoidClosed rooms without heat exhaust planning.
Buyer notePortable AC solves spot heat, not whole-building HVAC design.

Model Specification

This is the exact model row from the cited catalogue page. Working temperature is 16–45°C and drainage method is automatic drainage in the same source row.

Modèle Voltage Cooling capacity Rated power Airflow Noise Refrigerant Weight Size (mm)
HT-P20GA AC220 V / 50 Hz 1460 W (5000 BTU) 620 W 300 m³/h 52 dB(A) R134A 26 kg 310 × 470 × 630

Source: CHIC HVAC 2026 Catalogue, p. 51.

HT-P20GA Technical Parameters

Model: HT-P20GA. Review the published values below with the project cooling duty, power supply, ambient conditions and water-handling requirements.
HT-P20GA Portable Air Conditioner | Industrial Spot Cooling technical and selection table
Élément Published value Project relevance
Modèle HT-P20GA Original model code found in Linggong source table.
Machine type Smaller Than 1HP Helps compare portable AC size class before checking cooling capacity.
Voltage / frequency AC220V-50Hz Must match site power supply before order confirmation.
Cooling capacity 1460W (5000BTU) Main sizing indicator for spot cooling duty.
Rated power 620 W Useful for power planning and circuit load review.
Maximum power 710 W Check peak load and safety margin.
Maximum current 3.9 A Electrical circuit and breaker sizing reference.
Air volume 300 m³/h Helps estimate air circulation near the cooled workstation.
Noise 52 dB(A) Important for workshops where operators stay close to the unit.
Time setting 1-24H Useful for temporary work shifts and unattended cooling windows.
Temperature setting range 16-31°C Defines the selectable outlet/room temperature control range.
Working temperature 16-45°C Check ambient temperature before using in hot workshops.
Washable filter YES Reduces maintenance cost in dusty industrial environments.
Refrigerant R134A (filling capacity 320 g) Confirm service compatibility before export or maintenance planning.
Water capacity 8 L Relevant for condensate handling on smaller units.
Waterproof grade IPX0 This is not outdoor/weatherproof certification; protect against water ingress as required.

Where This Portable AC Fits

Use this unit for localized cooling where operators, machines or temporary work zones need direct cooling without installing a full fixed air-conditioning system.

Typical uses include industrial workshops, warehouse picking zones, maintenance stations, temporary production lines, equipment-side cooling and rental/seasonal cooling projects.

  • Good fit: short-term or point cooling with clear exhaust route.
  • Project fit: ambient temperature, power supply and condensate handling.
  • Not enough alone: sealed-room cooling if hot exhaust cannot be discharged.

Selection guide Selection factors

  • Cooling target: confirm workstation size, heat source, operator distance and required cooling time.
  • Power supply: verify AC220V-50Hz compatibility and available circuit margin.
  • Air path: confirm intake clearance, cold-air outlet direction and hot-air exhaust routing.
  • Environment: check dust, humidity, water splash risk and ambient temperature range.
  • Model confirmation: use the exact model datasheet for final electrical, refrigerant and dimensional confirmation.

What NOT to Buy

HT-P20GA Portable Air Conditioner | Industrial Spot Cooling technical and selection table
Situation Risk Better action
No exhaust path Hot air recirculates and cooling effect drops. Plan exhaust ducting or choose a fixed HVAC solution.
Wrong voltage Startup failure or electrical safety risk. Confirm site voltage/frequency for product selection.
Whole-room cooling expectation Portable spot coolers may not replace central HVAC. Use a larger fixed system or multiple units after load calculation.
Outdoor rain exposure Water ingress risk unless rated and installed for it. Use weather-protected equipment and check IP rating.

Portable Air Conditioner Buyer Checklist

Use the source-backed product information on this page as the starting point, then confirm site conditions before approving the final model.

  • Cooling target area and heat source intensity
  • Available voltage/frequency and socket/circuit capacity
  • Hot-air exhaust path, condensate handling and movement route
  • Quantity, delivery region and required documentation
Selection note

HT-P20GA is positioned for compact portable spot cooling; confirm airflow path and heat exhaust before selecting the final spot-cooling unit.

FAQ

Can this portable AC cool an entire room?

It is mainly for spot cooling. Whole-room performance depends on room size, heat load and exhaust routing.

Can I use it in a dusty workshop?

Check filter maintenance and intake clearance. If the source row includes a washable filter, clean it regularly.

Is the source model different from the website model?

Some Linggong source tables use HT model codes while the current PIM layer uses LG model codes. The source model is shown above to avoid silent normalization.

Download product catalog PDF

Download the English product catalog PDF for HT-P20GA Portable Air Conditioner | Industrial Spot Cooling. Use it for model comparison, technical review and inquiry preparation.

Download catalog PDF

Use the exact model, voltage and installation conditions for project selection.

Core Engineering Features

Source-backed industrial portable air conditioner parameters set against the published values on this page. Every point below is taken from this model’s own data.

Cooling capacity1460W (5000BTU)
Power supplyAC220V-50Hz
Machine classSmaller Than 1HP
VoltageAC220V-50Hz
Rated power620W
Noise–

Quality Assurance & Warranty

Portable air conditioner orders are checked at the factory before shipping, because spot-cooling performance depends on the unit matching its rated capacity and exhaust arrangement.

Applied to this model: Cooling capacity 1460W (5000BTU), Power supply AC220V-50Hz. These checks are run against that specification before the unit ships.

Cooling output checkChecks cover compressor start-up, condensate handling, airflow, noise review and model-to-table parameter matching.
Documented complianceCE, RoHS and related files cover the listed portable cooling families; see the documents section below.
Warranty supportWarranty for portable air conditioner orders is confirmed with the quotation for your destination market.
Service parts for portable coolingFilters, castors, exhaust ducts and common service items.

OEM/ODM & Supply Options

For distributors and contractors working on spot-cooling projects, the supply side adapts to your market instead of one fixed portable build.

For this model (Cooling capacity 1460W (5000BTU), Power supply AC220V-50Hz), the OEM route can start from that base specification rather than a blank sheet.

OEM/ODMBadging, packaging and control options for portable cooling orders, including branded cartons and manual inserts.
Capacity and supply variantsCooling capacity, refrigerant and voltage or plug configuration are reviewed for your market.
Voltage & plug optionsVoltage and plug configuration for this product line can be reviewed during quotation.
Documentation & bulk supplyCatalogues, technical sheets, available certificates, volume pricing and distributor programs for this product line.
Order quantity & lead timeMinimum order quantity, sampling and production lead time are confirmed per model and order volume — see the B2B supply page for how sourcing enquiries are handled.
