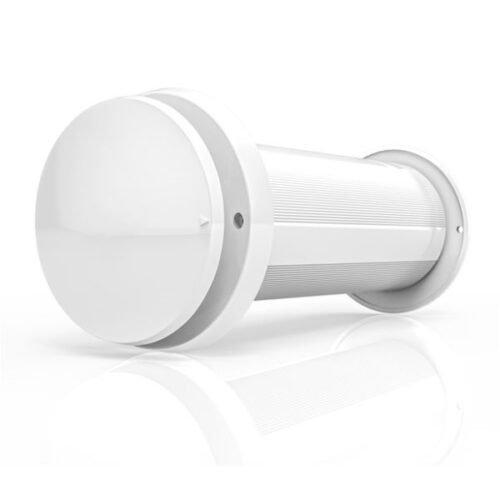

Fresh Air Valve With Thermostat | Automatic Ventilation Air Inlet
  1. FRESH-AIR-VALVE-WITH-THERMOSTAT
  2. Fresh Air Valve With Thermostat-1
  3. FRESH-AIR-VALVE-WITH-THERMOSTAT-size1
  4. FRESH-AIR-VALVE-WITH-THERMOSTAT-size2

Fresh Air Valve With Thermostat | Automatic Ventilation Air Inlet

thermostatic fresh-air inlet valve for passive fresh-air inlet for single-room ventilation and retrofit fresh-air systems

ADÉQUATION AU PROJET
thermostatic fresh-air inlet valve for passive fresh-air inlet for single-room ventilation and retrofit fresh-air systems
SOURCE NOTE
Key values from CHIC GROUP HVAC 2026 PDF p.9; confirm compatibility
QUOTE CHECKLIST
Confirm duct size, wall thickness, outdoor temperature range, airflow target and installation position
Contrôle industriel de l'humidité

Source-backed fresh air valve parameters

Source publiée : KCVENTS fresh air valve technical table. This is a component-level specification; confirm thermostat and installation conditions before quotation.

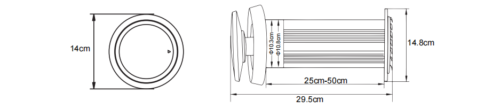

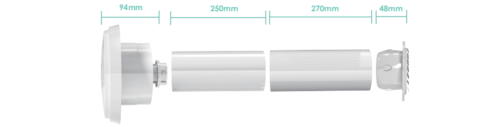

Duct SizeExtendable Duct LengthMax Allowed AirflowSound LevelApplication Area
100 mm250–500 mm30 m³/h20–35 dB10 m²
Fresh-air accessory selection overview

Accessory Selection Snapshot

Fresh Air Valve With Thermostat is positioned for passive fresh-air inlet for single-room ventilation and retrofit fresh-air systems. The confirmed source values below come from CHIC GROUP HVAC 2026 PDF page 9 and should be confirmed against the exact compatible unit for quote review.

Confirm the exact order version and compatibility for quote review.
Project fitthermostatic fresh-air inlet valve
Applicationpassive fresh-air inlet for single-room ventilation and retrofit fresh-air systems
Project detailsConfirm duct size, wall thickness, outdoor temperature range, airflow target and installation position
Compatibility first

Accessory pages should not be selected by name alone. Confirm compatible unit, wall/opening size, airflow effect and replacement/maintenance access.

Documented checks

Key accessory checks

Fresh Air Valve With Thermostat | Automatic Ventilation Air Inlet technical and selection table
Élément Source value Buyer check
Duct size 100 mm confirm wall opening before order
Extendable duct length 250–500 mm Confirm the exact installation opening and operating conditions.
Airflow 30 m³/h Confirm the exact installation opening and operating conditions.
Sound level 20–35 dB Confirm the exact installation opening and operating conditions.
Application area 10 m² Confirm the exact installation opening and operating conditions.
Control principle thermostat opens above +10°C and closes below -5°C Confirm the thermostat range and installation conditions; no electrical connection is required.
Application fit

Where this accessory fits

This accessory supports fresh-air or HRV-related systems where the buyer needs better air inlet control, filtration, or PM2.5/odor reduction.

Final selection depends on unit compatibility, airflow resistance, installation location and maintenance access.

Send these details

  • Compatible HRV/fresh-air unit or project type
  • Wall/opening size or filter size
  • Target issue: PM2.5, odor, airflow, or inlet control
  • Quantity and replacement schedule if known
Selection guide

Accessory selection guide

1. Confirm system type

Single-room HRV, fresh-air inlet, filter box or wall-mounted fresh-air unit.

2. Check compatibility

Confirm model, size, airflow impact and installation space.

3. Match target problem

Fresh-air control, PM2.5 filtration, odor/formaldehyde reduction or pre-filter protection.

4. Request confirmation

Send unit model and installation details for quote review.

Comparer

Compare accessory options

Fresh-air valves control inlet behavior, HEPA/carbon filters improve air cleaning, and filtration boxes add a compact powered fresh-air/filtering unit. Compare by compatibility first, not only by product category.

Frequently asked questions

Can I use this with any HRV?

No. Confirm compatible unit, dimensions, airflow effect and mounting method for final selection.

Are the listed values final?

The values are confirmed from PDF p.9; confirm the exact version and compatible unit for quote review.

What should I send for quote?

Send unit model, size/opening, airflow requirement, target pollutant or control need, quantity and destination.

Download fresh air valve spec table (PDF)

Fresh Air Valve With Thermostat Selection Notes

Use this page to review a fresh-air valve with thermostat for balanced ventilation projects. Compare the valve with the connected fresh-air or exhaust unit before requesting a quote.

Related Linggong products and guides

What does a fresh air valve with thermostat do?

It helps regulate outdoor air intake based on temperature conditions so the ventilation system can maintain air balance more effectively.

Where is this valve installed?

It is typically installed as part of a fresh-air or room ventilation system where controlled inlet air is needed.

Do I still need an exhaust fan?

Yes. A fresh air valve supplies or controls inlet air; an exhaust fan or duct fan is still needed to remove stale air and create airflow.

Core Engineering Features

Source-backed fresh air valve parameters set against the published values on this page. Every point below is taken from this model’s own data.

Project fitthermostatic fresh-air inlet valve
Applicationpassive fresh-air inlet for single-room ventilation and retrofit fresh-air systems
Project detailsConfirm duct size, wall thickness, outdoor temperature range, airflow target and installation position
Extendable Duct Length250–500 mm
Max Allowed Airflow30 m³/h
Sound Level20–35 dB

Quality Assurance & Warranty

Fan orders are checked at the factory before shipping, because published airflow and pressure only hold if the delivered unit matches its table row.

Applied to this model: Project fit thermostatic fresh-air inlet valve, Application passive fresh-air inlet for single-room ventilation and retrofit fresh-air systems. These checks are run against that specification before the unit ships.

Airflow and pressure checkChecks cover motor start-up, impeller balance, airflow and static pressure verification, noise review and model-to-table parameter matching.
Documented complianceCE, RoHS and related files cover the listed fan families; see the documents section below.
Warranty supportWarranty for fan orders is confirmed with the quotation for your destination market.
Service parts for fansImpellers, motor capacitors, mounting brackets and common service items.

OEM/ODM & Supply Options

For distributors and contractors working on ventilation projects, the supply side adapts to your market instead of one fixed fan build.

For this model (Project fit thermostatic fresh-air inlet valve, Application passive fresh-air inlet for single-room ventilation and retrofit fresh-air systems), the OEM route can start from that base specification rather than a blank sheet.

OEM/ODMBadging, packaging and control options for fan orders, including branded cartons and manual inserts.
Airflow and pressure variantsModel selection, motor power and voltage options are reviewed against your duct calculation.
Voltage & plug optionsVoltage and plug configuration for this product line can be reviewed during quotation.
Documentation & bulk supplyCatalogues, technical sheets, available certificates, volume pricing and distributor programs for this product line.
Order quantity & lead timeMinimum order quantity, sampling and production lead time are confirmed per model and order volume — see the B2B supply page for how sourcing enquiries are handled.
